Diesel Fuel
Max Capcity 226.80kg
Location : Tangerang
Auxiliary Power | 12 Volts DC |
Capacity - Fuel Tank | 31 gal. / 117.35 L |

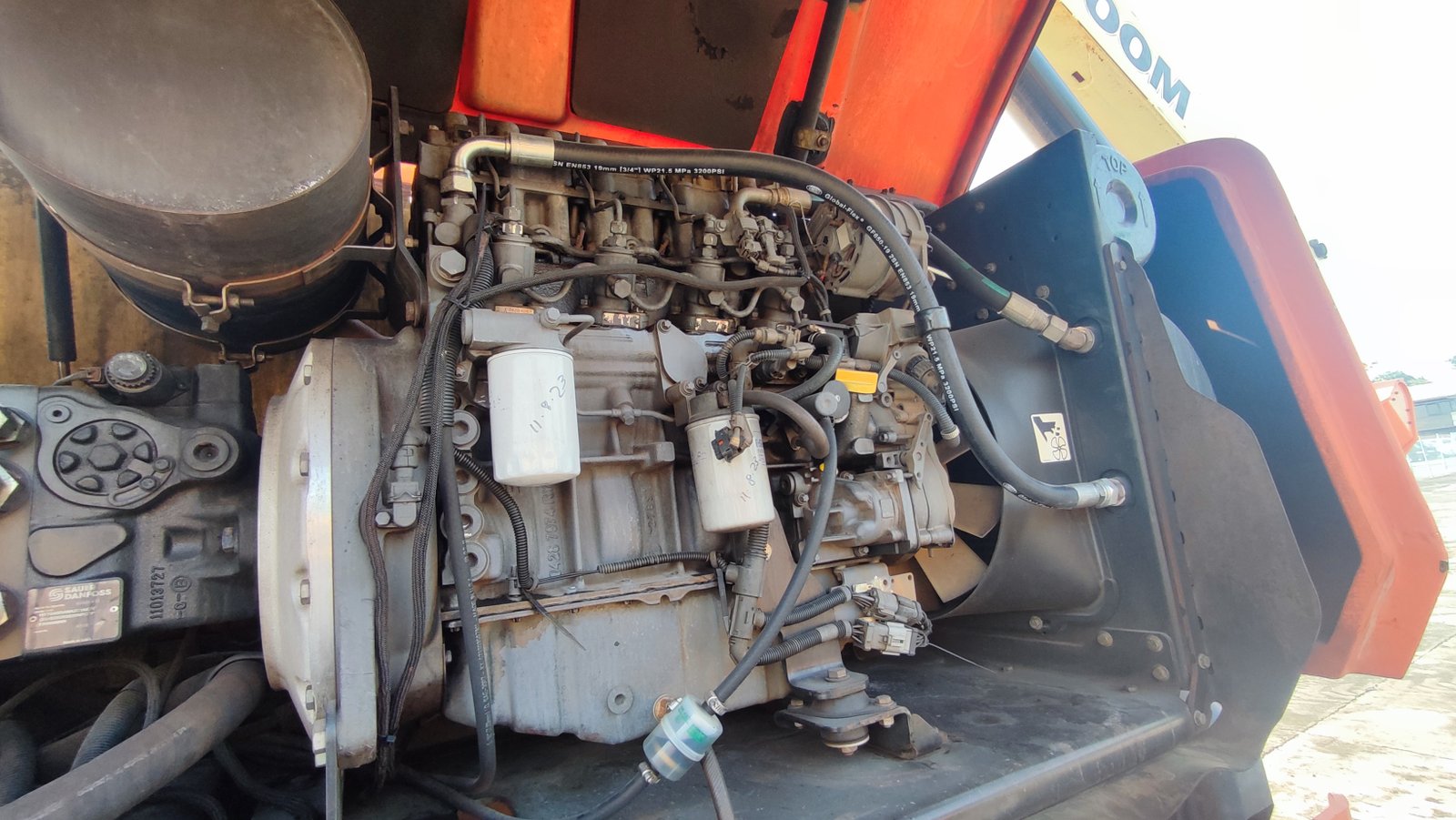

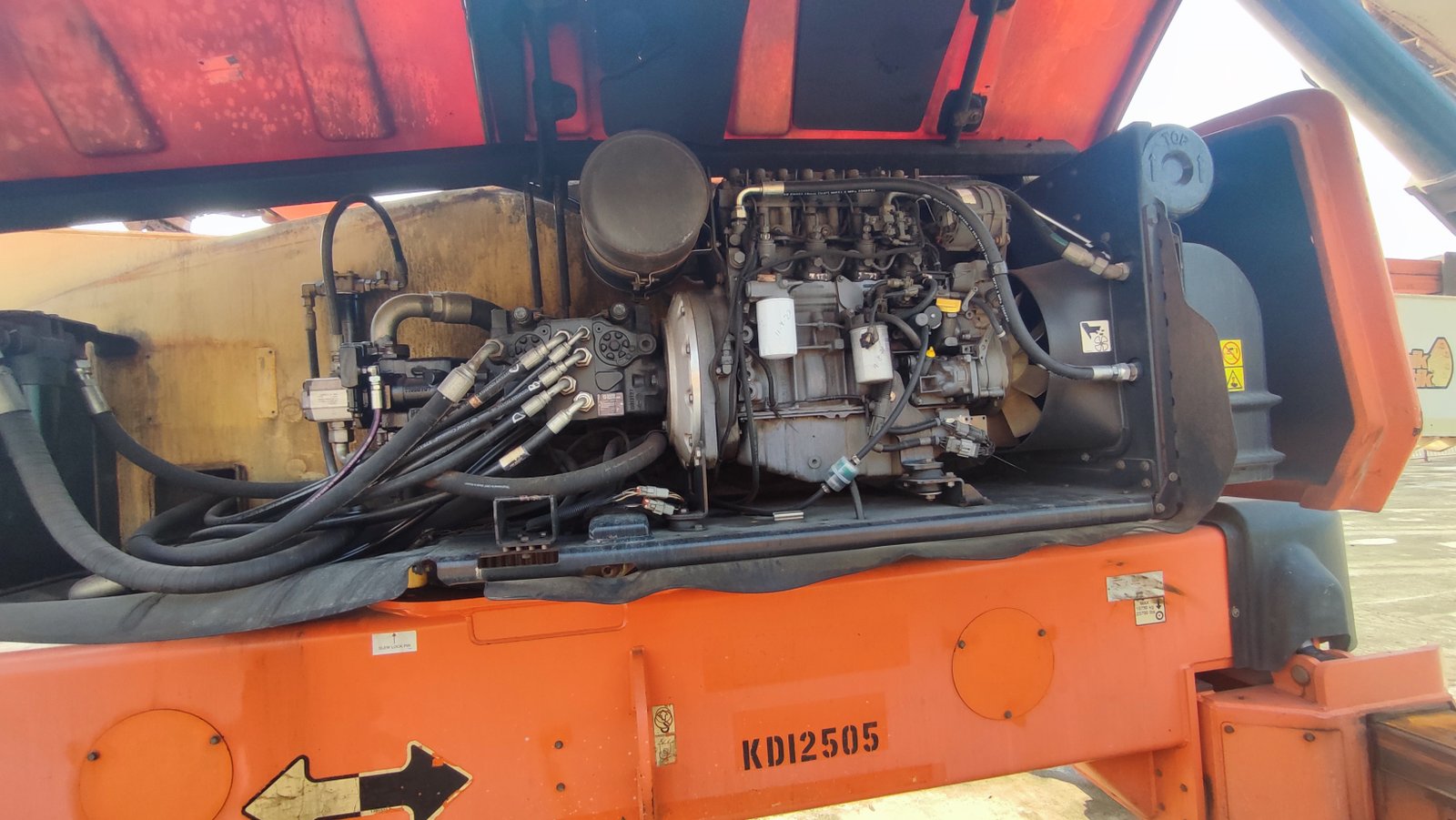

Engine Type - Diesel | DEUTZ TCD2.9L4 Tier 4 Final 74.2 hp |
Axle Oscillation | 8 in. / 0.2 m |
Drive Speed - 4WD | 3.3 mph / 5.23 km/h |
Gradeability - 4WD | 45 % |
Platform Capacity - Restricted | 1000 lb / 453.59 kg |
Platform Capacity - Unrestricted | 500 lb / 226.80 kg |
Swing | 360 Degrees |
Swing Type | Continuous |
Turning Radius - Outside (axles extended) | 19 ft 4 in. / 5.89 m |
Turning Radius - Outside (axles retracted) | 22 ft 6 in. / 6.86 m |
Jib - Range of Articulation | 130 Degrees |
Transport Length | 37 ft 7 in. / 11.46 m |
Ground Clearance | 1 ft / 0.3 m |
Machine Height | 10 ft / 3.05 m |
Machine Length | 47 ft 6 in. / 14.48 m |
Machine Width | 8 ft 2 in. / 2.49 m |
Overall Width (Axles Extended) | 12 ft 6 in. / 3.81 m |
Platform Dimension A | 3 ft / 0.91 m |
Platform Dimension B | 8 ft / 2.44 m |
Tailswing | 3 ft / 0.91 m |
Tire Sizes | 445/50D710 Foam-Filled |
Horizontal Jib Rotation | 125 Degrees |
Horizontal Outreach | 63 ft 2 in. / 19.25 m |
Platform Height | 125 ft / 38.1 m |
Up and Over Height | 460 ft 6 in. / 18.44 m |
Capacity - Hydraulic Reservoir | 53 gal. / 200.63 L |
Maximum Ground Bearing Pressure | 100 psi / 7 Kg/cm2 |
Machine Weight | 44000 lb / 19958.06 kg |
